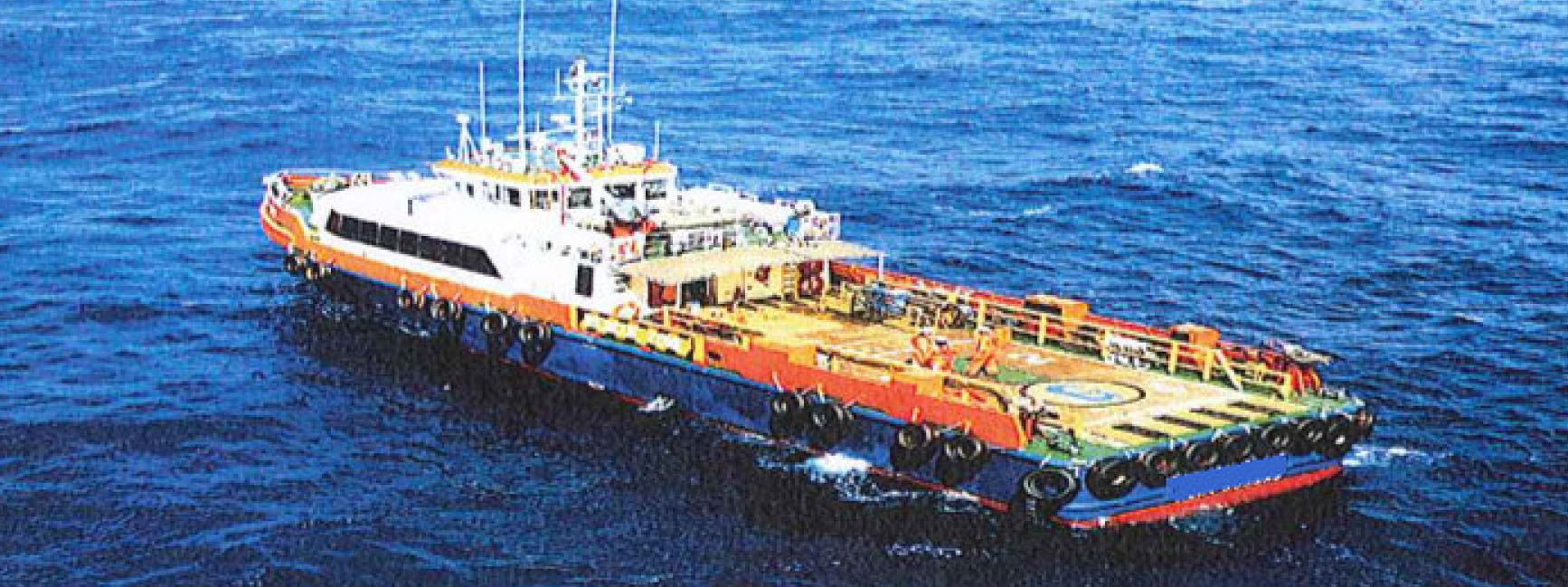

Crew Boat
PRINCIPAL PARTICULARS
Year Built: 2005
Class: BV
Notation: 1 Hull Mach HSC - Cat A Crew Boat,
Type: Super Fast Crew Boat / Utility Vessel
Year Built: 2005
Class: BV
Notation: 1 Hull Mach HSC - Cat A Crew Boat,
Type: Super Fast Crew Boat / Utility Vessel
DIMINSION
Length(overall): 34.00 m
Length(Registered): 31.49 m
Breadth(Moulded): 7.85 m
Depth(Moulded): 3.30 m
Draft(Moulded): 1.50 m
Summer freeboard: 2030 m
GRT: 228 mt
NRT: 68 mt
Summer freeboard: 2030 m
GRT: 228 mt
NRT: 68 mt
PERFORMANCE
Maximum Speed@ 100%MCR: 24.0 Knots
Cruising Speed@85%MCR: 21.0 Knots
Eco. Speed: 18.0 Knots
Type of fuel: Marine Diesel Oil
CARGO CAPACITIES
Deck Cargo : 40 mt (max
Deck Strength: 2.5 Tonne/m2
Clear Deck Area: 76.68 m2
Fuel Oil: 50 m2
Fresh Water: 20 m2
Sludge tank: 250 Ltrs
Dispersant tank: 200 Ltrs
Cargo railing height: 1.118 m
PROPUL SION SYSTEM
Main Engine: 3x 1350 BHP @ 1900 rpm Cummins KTA 38-M2
Main Generator: 2x 75kW Cummins 68T5.9 DM
Bow Thruster: 1x 1000kg thrust
Steering Gear: 1x Kobelt 7175 MA (electrohydraulic
Propulsion: 3 x 5 Bladed FPP ct Nickel Aluminum Bronze
Rudders: 2 nos
DECK EQUIPMENT
Anchor winch: Electrical, single drum and warping
Anchors: High Holding Power type. 1 x 135kg (approx
Chains: Steel wire rope (length and breaking strength as required by Class) 12.6m x 14 mm dia. stud link chain
Bollards: 4x 100 mm dia. double.bit / 2 x 100 mm single bit
Mooring Chocks: 4
FIRE FIGHITING EQUIPMENT
External
fire monitor: 2 units fitted on the port and starboard side aft(stern) on the main deck
Emergency fire Pump: Diesel driven 30 m2/hr portable type
Enternal
Fixed System in E/R: CO2 System
Fire Detection System: Fire Alarm panel Notifier
Fire blanket: 3 units
FIFI pump: 300 m2/hr Volvo Penta (standalone unit)
NAVIGATION/COMMUNICATION EQUIPMENTS
GMDSS: 3 set IC-GM 1600 icom
SSB: 2 set icom IC-M710, FurunoFS2571C
SART: 2 x ACR PATHFINDER TM
EPIRB: 1 set GME ACCUSAT MT 403FF
Inmarsat C: 1 set
VHF Radio: 2 x SAILOR T&T R T5022, STANDARD HORIZON
Portable VHF Radio:3 x handheld VHF, 2.5W , LS. type ow spare battery & charger
Satellite Phone/fax:1 unit SAILOR T&T
Navtex Receiver:1 x Momurdo, ICS NAV 5 PLUS
X-Band Radar:2 xFURUNO FR 2115 & KODEN MRT -99
Encho Sounder:1 xSkipper Nanjing Marine, ED 161
GPS:1 xSIMRAD GN33
Gyro Compass: NIL
Autopilot:1 xSIMARD AP50
Speed Log:1 unit ANTHEA
Magnetic Compass:1 set ow reflector
AIS:1 SET Samyung S1.30
ACCOMMODATIONS
Berths:8 berths for marine officer/crew
Hospital: 2 berths
GPS:1 xSIMRAD GN33
ACCOMMODATIONS
All cabins are fully air- conditioned
LIFE SAVING APPLIANCE
Search Lights:2 x 2000W
Liferafts:4 x 25 men SOLAS Type
2 x 16 men SOLAS Type
Lifebuoys:8 pos
Life jackets:70 pos
Work Vest:12 units
EEBD: 2 units
Line Throwing:4 projectiles and lines
Rescue boat: 1 inflatable rescue boat for 6 men with 25HP outboard motor and launching davit
AUXILLIARY SYSTEM
Rescue Zone: port & starboard at main deck
Oily Water Separator: 1 nos- of 0.5t/hr Georim
Ref.No.CB103
Request More Information
T: 88644190-3
Cruising Speed@85%MCR: 21.0 Knots
Eco. Speed: 18.0 Knots
Type of fuel: Marine Diesel Oil
CARGO CAPACITIES
Deck Cargo : 40 mt (max
Deck Strength: 2.5 Tonne/m2
Clear Deck Area: 76.68 m2
Fuel Oil: 50 m2
Fresh Water: 20 m2
Sludge tank: 250 Ltrs
Dispersant tank: 200 Ltrs
Cargo railing height: 1.118 m
PROPUL SION SYSTEM
Main Engine: 3x 1350 BHP @ 1900 rpm Cummins KTA 38-M2
Main Generator: 2x 75kW Cummins 68T5.9 DM
Bow Thruster: 1x 1000kg thrust
Steering Gear: 1x Kobelt 7175 MA (electrohydraulic
Propulsion: 3 x 5 Bladed FPP ct Nickel Aluminum Bronze
Rudders: 2 nos
DECK EQUIPMENT
Anchor winch: Electrical, single drum and warping
Anchors: High Holding Power type. 1 x 135kg (approx
Chains: Steel wire rope (length and breaking strength as required by Class) 12.6m x 14 mm dia. stud link chain
Bollards: 4x 100 mm dia. double.bit / 2 x 100 mm single bit
Mooring Chocks: 4
FIRE FIGHITING EQUIPMENT
External
fire monitor: 2 units fitted on the port and starboard side aft(stern) on the main deck
Emergency fire Pump: Diesel driven 30 m2/hr portable type
Enternal
Fixed System in E/R: CO2 System
Fire Detection System: Fire Alarm panel Notifier
Fire blanket: 3 units
FIFI pump: 300 m2/hr Volvo Penta (standalone unit)
NAVIGATION/COMMUNICATION EQUIPMENTS
GMDSS: 3 set IC-GM 1600 icom
SSB: 2 set icom IC-M710, FurunoFS2571C
SART: 2 x ACR PATHFINDER TM
EPIRB: 1 set GME ACCUSAT MT 403FF
Inmarsat C: 1 set
VHF Radio: 2 x SAILOR T&T R T5022, STANDARD HORIZON
Portable VHF Radio:3 x handheld VHF, 2.5W , LS. type ow spare battery & charger
Satellite Phone/fax:1 unit SAILOR T&T
Navtex Receiver:1 x Momurdo, ICS NAV 5 PLUS
X-Band Radar:2 xFURUNO FR 2115 & KODEN MRT -99
Encho Sounder:1 xSkipper Nanjing Marine, ED 161
GPS:1 xSIMRAD GN33
Gyro Compass: NIL
Autopilot:1 xSIMARD AP50
Speed Log:1 unit ANTHEA
Magnetic Compass:1 set ow reflector
AIS:1 SET Samyung S1.30
ACCOMMODATIONS
Berths:8 berths for marine officer/crew
Hospital: 2 berths
GPS:1 xSIMRAD GN33
ACCOMMODATIONS
All cabins are fully air- conditioned
LIFE SAVING APPLIANCE
Search Lights:2 x 2000W
Liferafts:4 x 25 men SOLAS Type
2 x 16 men SOLAS Type
Lifebuoys:8 pos
Life jackets:70 pos
Work Vest:12 units
EEBD: 2 units
Line Throwing:4 projectiles and lines
Rescue boat: 1 inflatable rescue boat for 6 men with 25HP outboard motor and launching davit
AUXILLIARY SYSTEM
Rescue Zone: port & starboard at main deck
Oily Water Separator: 1 nos- of 0.5t/hr Georim
Ref.No.CB103
Request More Information
T: 88644190-3
