Crew Boat

GENERAL

IMO No: TBA

Official No: TBA

  Built/Delivery: 2007 / January 2008

Call Sign: TBA

Classification: BV (A1-IMO HSC)


DIMINSION

Tonnag-GT: 190 T

NT : 60 T

Length(overall): 38.00 m

Beam(Moulded): 8.20 m

Depth: 3.65 m

Draft(Loaded): 1.45 m


CAPACITIES

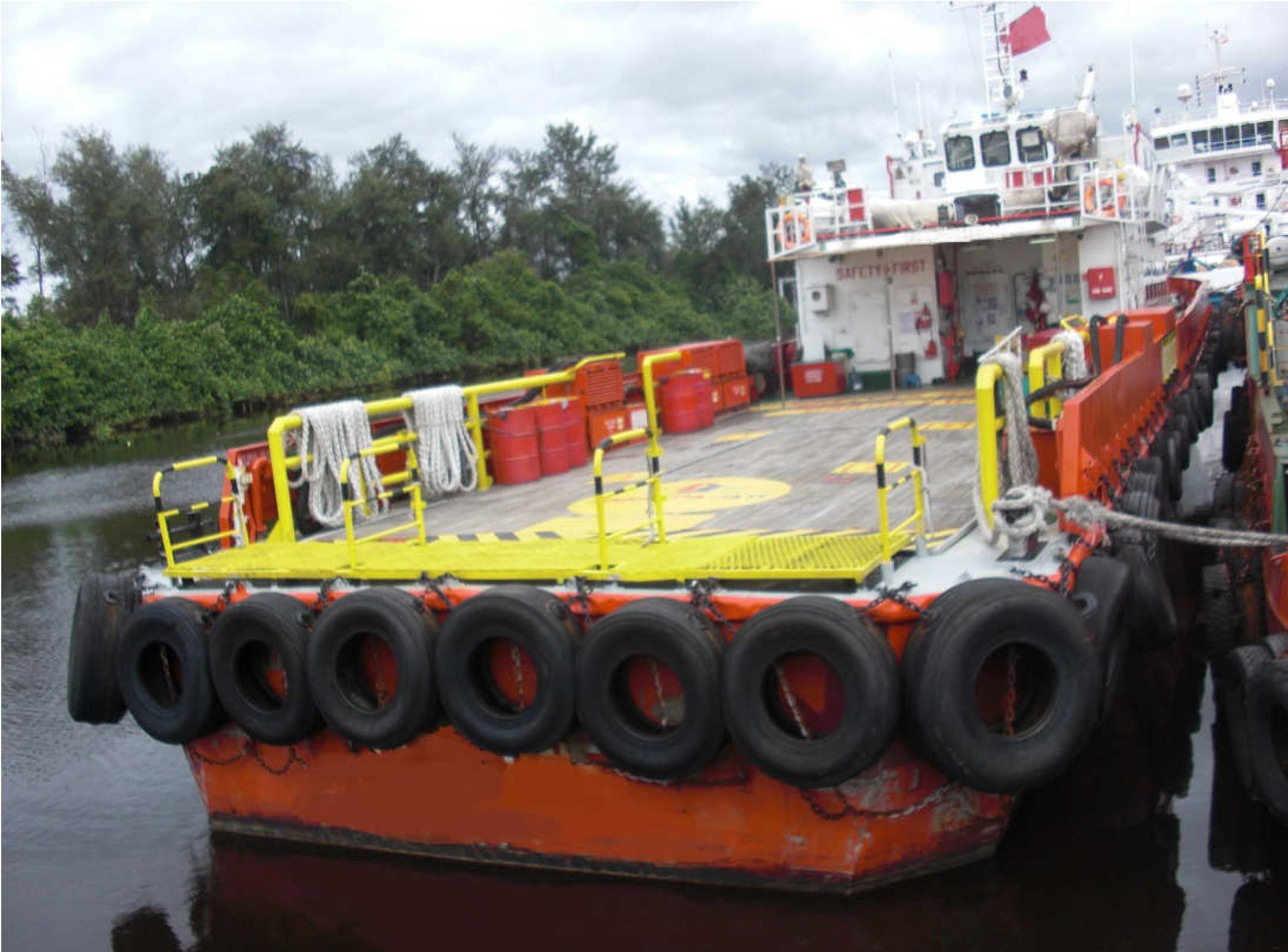

Cargo Deck Space : 6.53 m x 17.0 m (111.00m2

Deck Strength: 3 T/m2

Reefer Point: 4 nos on deck (220/440 VAC

Portable Water tanks: 35 m2

Fuel Oil Tanks: 90 m2

Lubrication Oil: 200 Ltrs

Cargo Weight-Maximun: 100 T

DeadWeight-Maximun: 218 T

Light displacement  : 110 T


PROPULSION

Main Engine      - Type : MTU-12V 396TE74L

- BHP: 3 x 2010 BHP -6030 BHP (4500KW

Propellers: 3x Fixed Pitch Propeller(FPP)

Bow Thruster: 2 MT lateral thrust

Controls: 2 control stands

Starter: Electrical

Reduction Gear & Ratio: D-Drive. Reintjes WVS 730

Speed / Consumption    -Maximum: 27 knots/ Approx 950 ltr/hr

 -Cruising: 24 knots @ 85 % MCR/Approx 750 ltr/hr

 -Genset: Approx 25 ltr/hr

 Generator    -Type: 2x CUMMINS 6C TBA-3D(M

-kW: 2x 135 kW

-Voltage: 415 V

-Phase: 3 phases

-Hz: 50 Hz

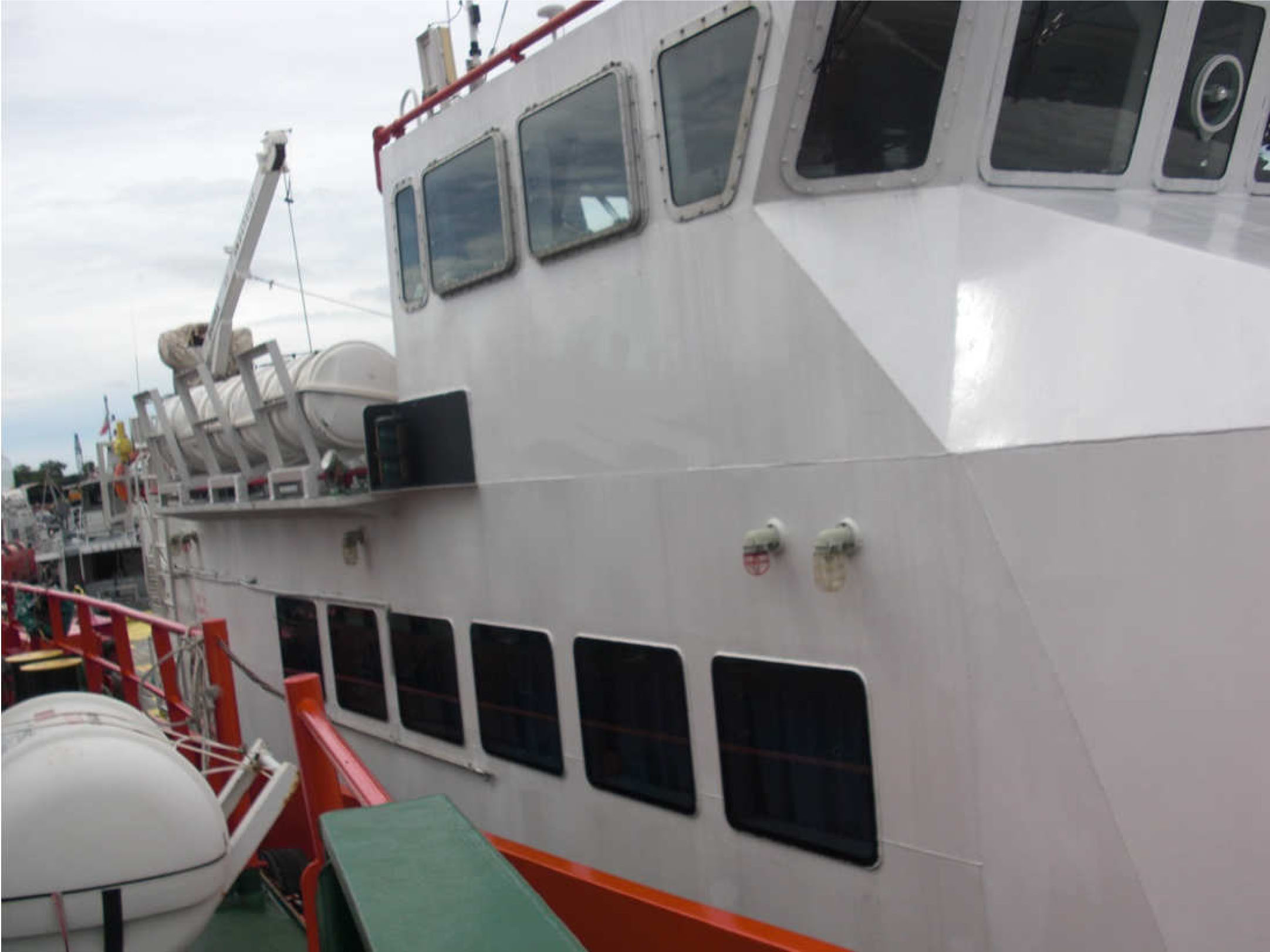

ACCOMMODATION

Cabin: 5 nos / 10 units
(4 berths x 1 nos
(2 berths x 2 nos
(1 berth x 2 nos

Crew: 8 pax

Passengers:70 pax (HSC,Business Class inclined seat, Fully air conditioned


LIFE SAVING EQUIPMENT

Water Curtain: All around accommodation


Inflatable Life Rafts: 50 men x 4 nos

Rescue Boat: 6 men x 1 Semi-Rigid rescue boat

c/w 25hp outboard engine

Ring Buoys: 8 nos

Man Over Board Marker: 2 nos

Life Jackets/Vests: 88 nos SOLAS approved

SART: 2 nos

EPIRB: 1 no

Line Throwing Apparatus: 1 set (4 projectiles & 4 lines

Scrambling Nets: 2 sets

FIRE-FIGHTING EQUIPMENT

Fire Extinguishers: As per SOLAS

Fireman Outfit: 2 nos

Breathing Apparatus: 2 sets of self-contained

External Fire Monitor: 1 x 150 m/hr @ 40 m

ELECTRONICS
Radar: 2 nos

VHF Radio: 2 sets

SSB Radio: 1 set

GMDSS VHF Portable Radio: 3 sets

Pathometer: 1 set, 1 repeater

Auto Pilot system: 1 set

Magnet-Compass: 1 set

 Gyro Compass: 1 set, 3 repeaters

Intercom system: PHONTECH with 10 substations

DGPS: 2 sets

Anemometer: 1 set

Thermometer: 1 no

Barometer: 1 no

Navtex: 1 set

Weather Fax: 1 set

Echo sounder: 1 set

Public Addressor/ PA: phontech with 4 zones


OTHERS

Bilge Pump/Ballast Pump: 50 m3/hr @ 80m head

Fire Pump: 50 m3/hr @ 80m head

Fresh Water Pump: 40 m3/hr @ 58m head

Anchor Weight: 255kg HHP

Anchor Windlass: DOUBLE E GYPSOY TWIN WARPING HEAD

Tugger Winchs: 1 x 5 MT

Stove(cooker): 1 no

Refrigerator: 2 x 100 ltrs

1 x 340 ltrs

Freezer: 1 x 600 ltrs

Washing machine: 2 x 10kg

Dryer: 1 x 10kg

Rescue Zone: 2

Hospital / owner cabin: 1

Stern boarding platform: Yes


Ref.No.CB104
